Busch Marine Cast Iron End Suction Pump BM733109-71

Busch Marine Cast Iron End Suction Pump BM733109-71

Busch Marine cast iron end-suction pumps are the ideal solution for large-scale industrial and marine pumping applications, delivering robust performance and superior control for demanding operations worldwide.

SPECIFICATIONS
Maximum working pressure: 16 bar
Liquid temperature: -10 °C to +120 °C*

MATERIALS
Pump casing: Cast Iron
Impeller: Bronze
Casing cover: Cast Iron
Casing wear rings: Bronze
Shaft: 431 Stainless Steel
Bearing housing: Cast Iron
Bearings: Sealed ball bearings

RANGE
2 Pole
32 to 150 mm Ø discharge
Capacity: 8 - 1100 m³/hr
Head: 10 - 150 m.hd
Up to 220 kW motor power required

4 Pole
˜ 32 to 200 mm Ø discharge
˜ Capacity: 4 - 1300 m³/hr
˜ Head: 3 - 95 m.hd
˜ Up to 355 kW motor power required

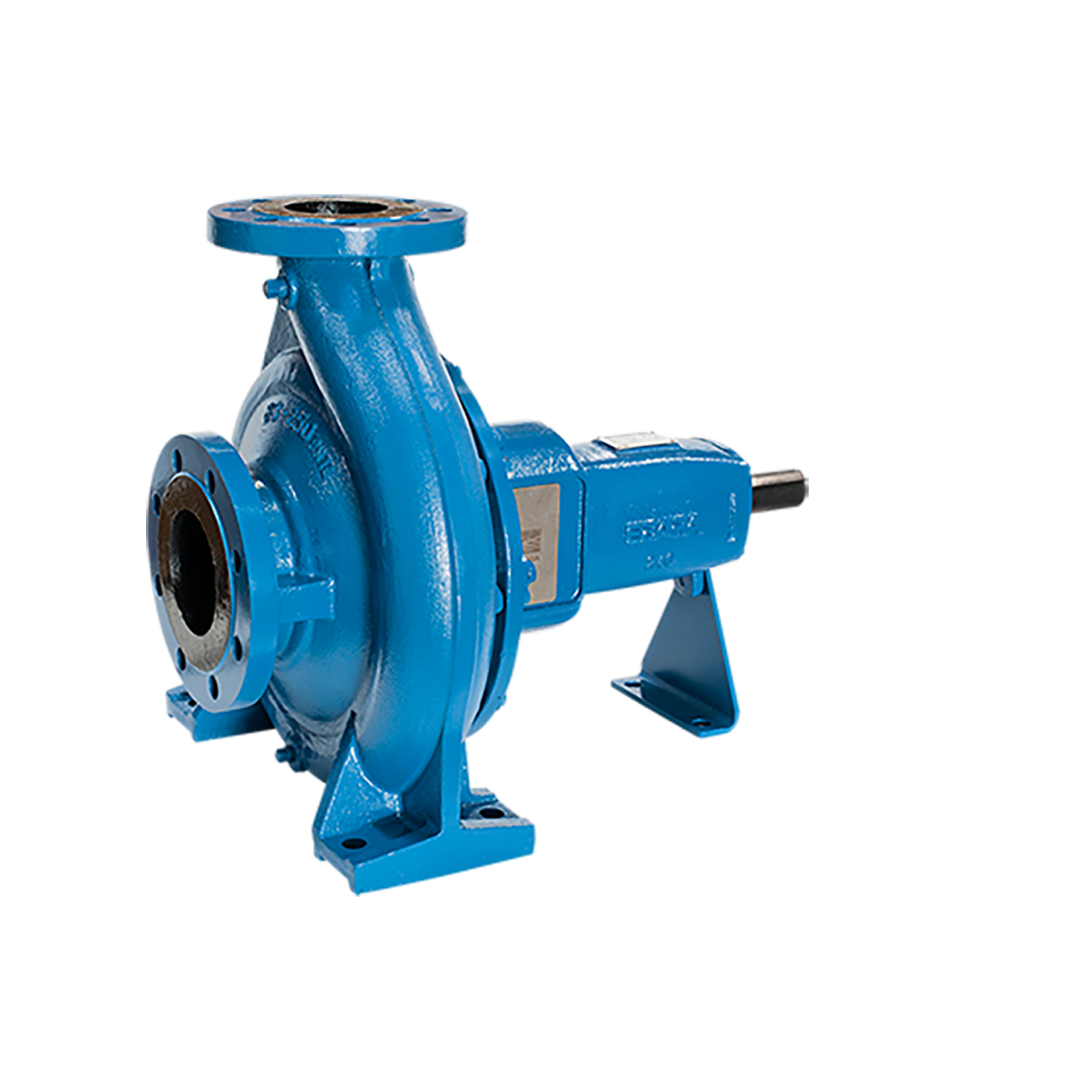

Magnetic Pump

Additional Images:

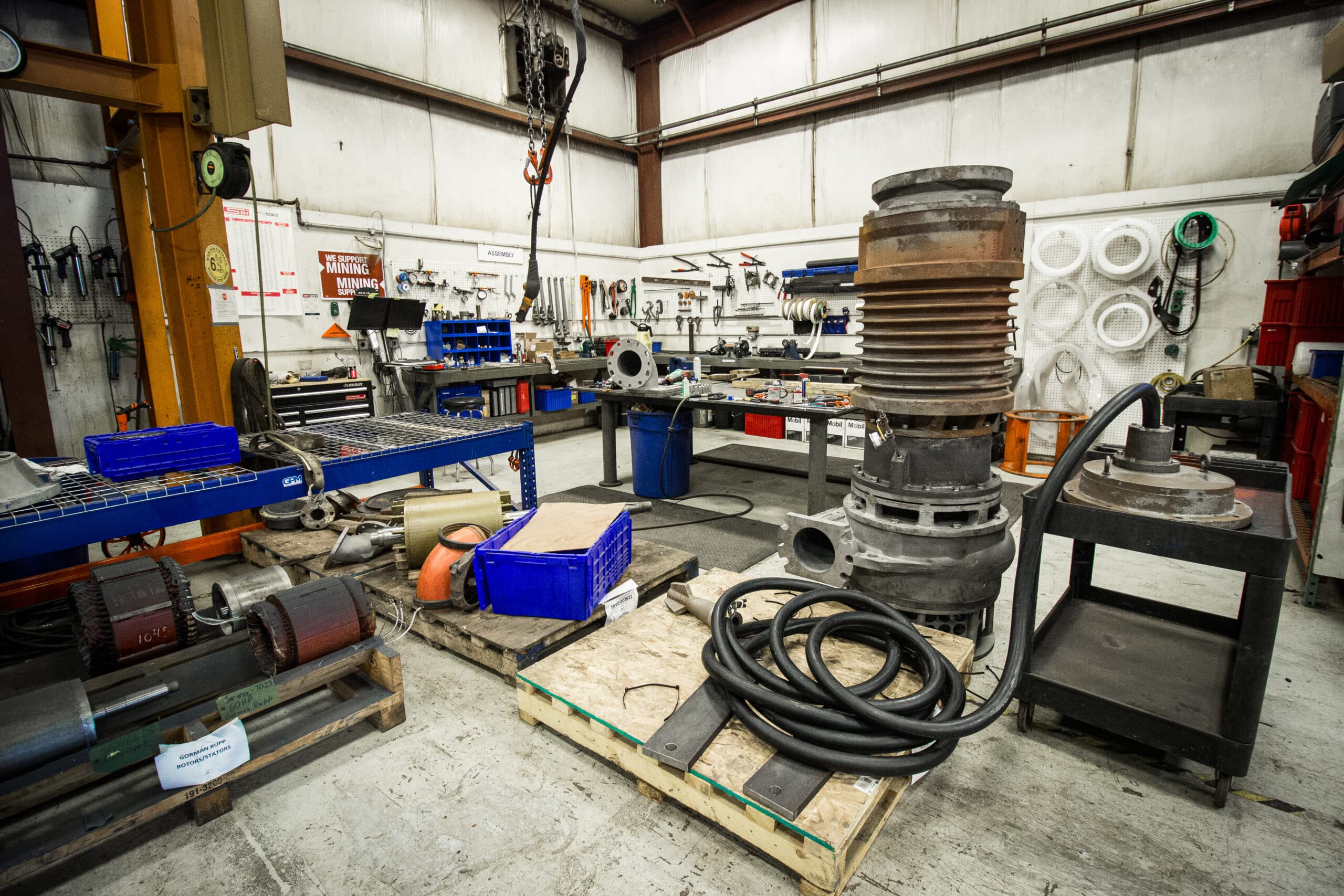

cast product image 2
cast product image 2

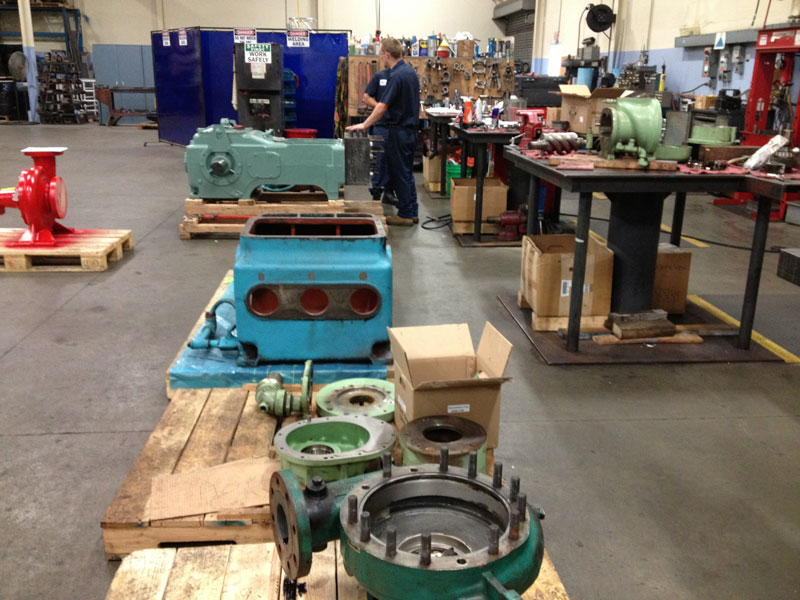

cast product image 3

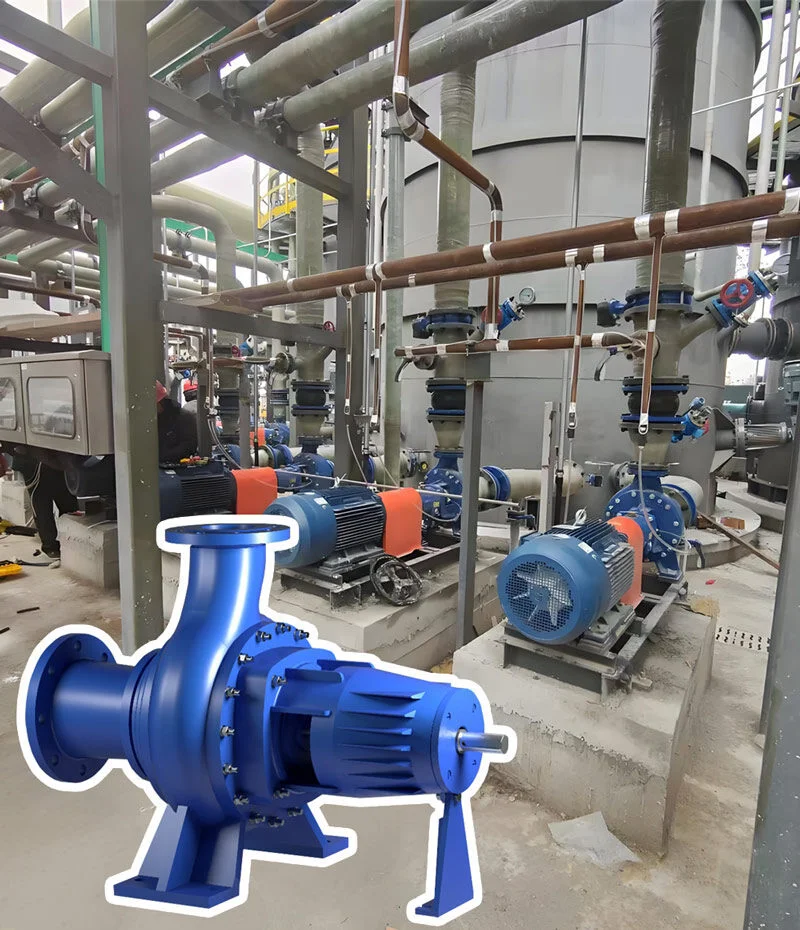

cast product image 4

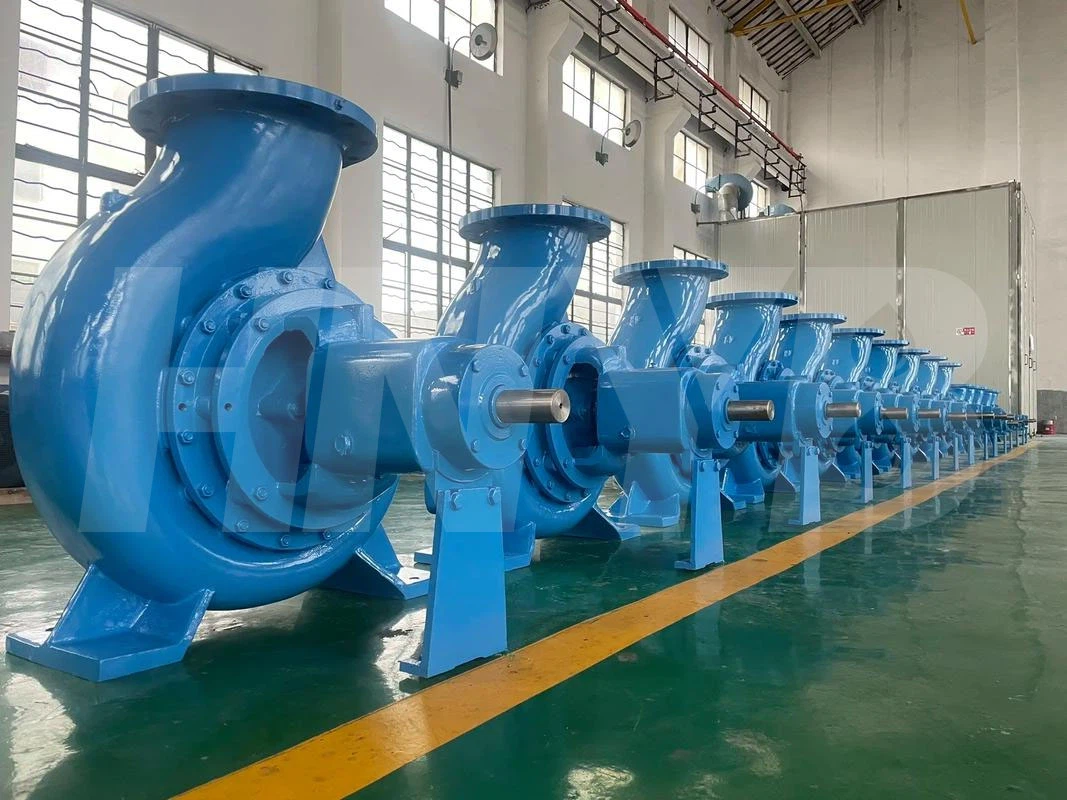

cast product image 5

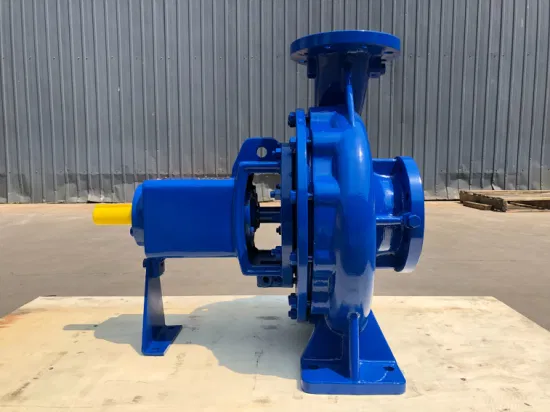

cast product image 6

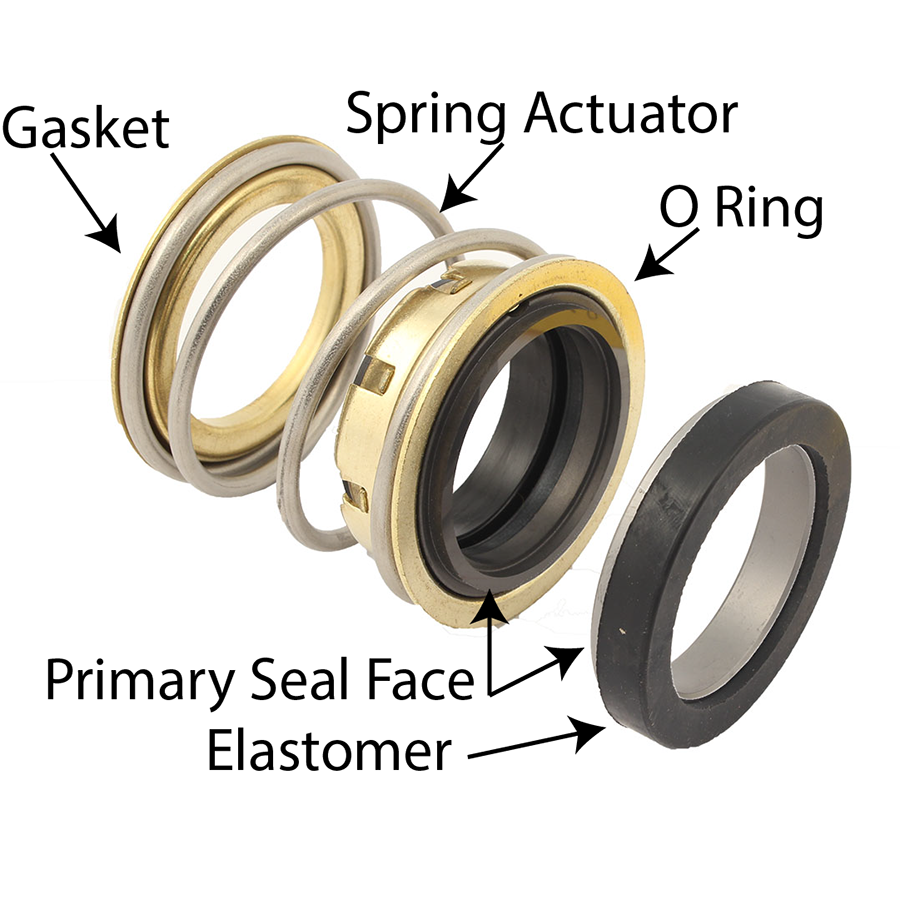

cast product image 7

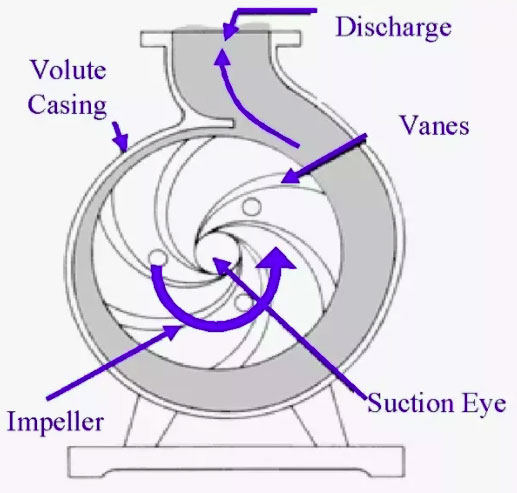

cast product image 8

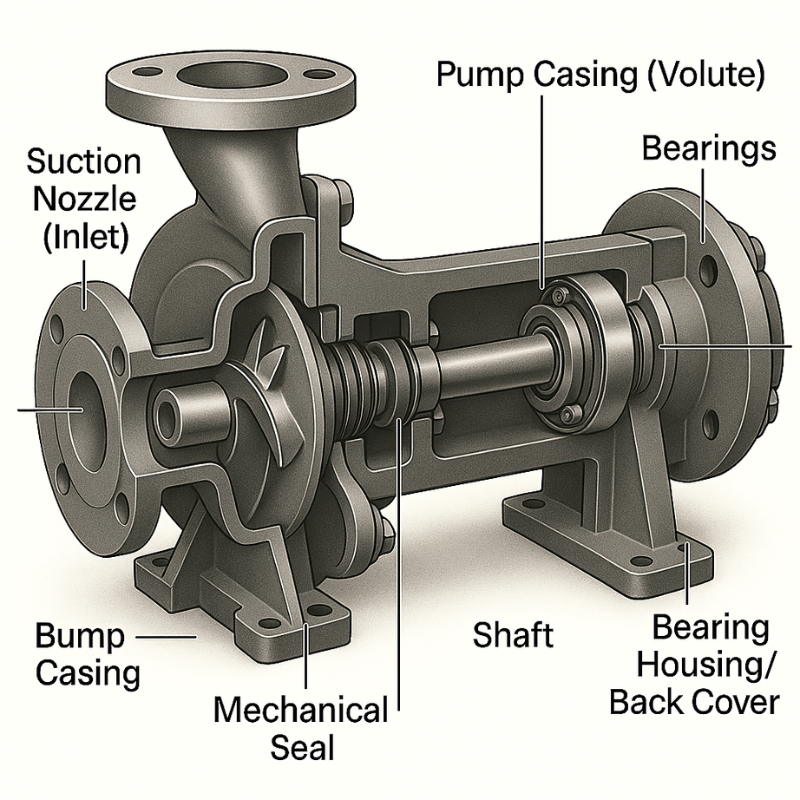

cast product image 9
cast product image 9



Why Choose Us?

Busch (UK) Limited is an internationally recognised engineering company with proven expertise in the design, manufacture, installation, and servicing of industrial Busch equipment and associated systems.

Backed by decades of practical experience across a wide range of industries, our strong technical capability enables us to work in close partnership with customers to deliver reliable, high-performance solutions tailored to demanding operating conditions.

Through ongoing research, development, and continuous product optimisation, we enhance efficiency, durability, and operational performance—ensuring our solutions remain effective, compliant, and future-ready.

For expert technical advice and a bespoke quotation tailored to your application, contact us today using our quick and easy contact form.
