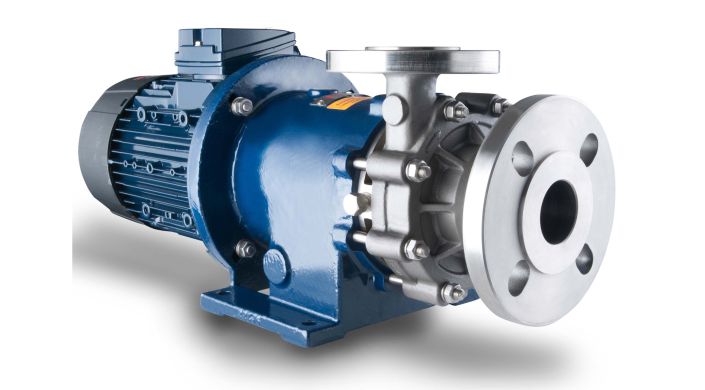

Magnetic Centrifugal Pumps BM895634-21

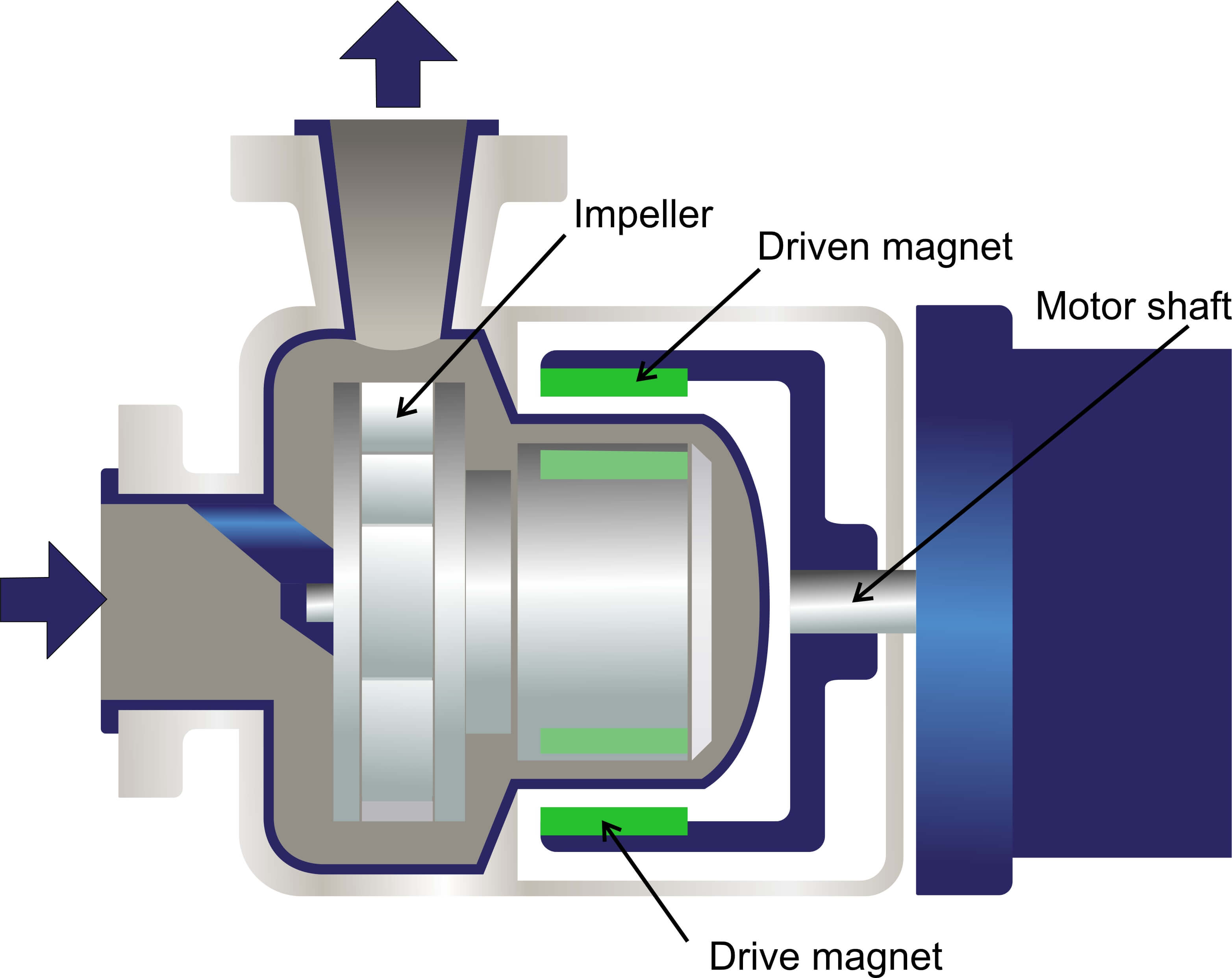

Magnetic centrifugal pumps provide an innovative solution for chemical process pumping by eliminating shaft seals. This design reduces both initial investment and ongoing operational costs, as mechanical seals, seal-flush systems, and cooling lines are no longer required.
PUMP SPECIFICATIONS:
Model Number .................BM895634-21
Size................9/260 14/340 19/390
Material...............Stainless Steel 1.4401 (AISI 316)
Max. Delivery Head in [M.WC] at 50 Hz.................9 14 19
Max.Volume Flow in [l/min] at 50 Hz................. 260 340 390
Max. Density in [G/cm³] at 50 Hz.................1.9 2.8 1.4 2.1 1.2 1.7
Motor Capacity in [KW].................1.5 2.2 1.5 2.2 1.5 2.2
Current Rating (400 V, 50 Hz) in [A].................3 4.2 3 4.2 3 4.2
Rated Speed in [Rpm] at 50 Hz.................3000
Suction Port.................DN 50
Discharge Port.................DN 32
Voltage in [V].................230 / 400 Three-Phase AC
Protection Class.................IP 55
Max.Flow Velocity in [m/s].................Suction Side = 1 / Discharge Side = 3
Max.System Pressure in [Bar].................25 / Optional 50
Max.Temperature in [°C].................190 / Optional up to 300
